SMC Modular Fieldbus System for Valve Manifolds
Wired and wireless solutions for advanced communication systems

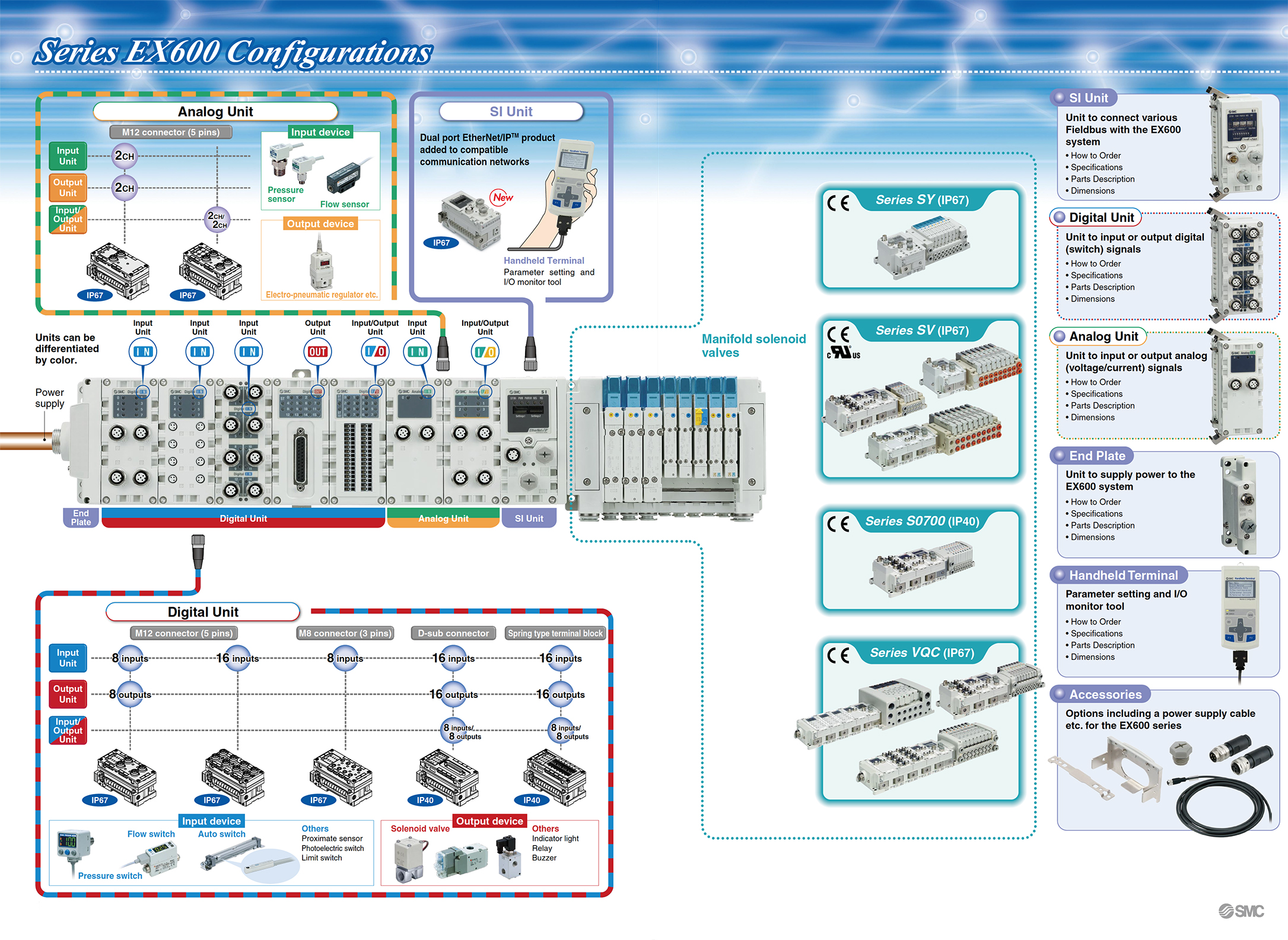

The EX600 serial interface offers a full suite of diagnostics and programmable parameters to meet the most stringent requirements. The EX600 offers excellent flexibility, including digital input, digital output, and analog input unit options. With the use of D‑sub output blocks, a maximum of nine remote D‑sub manifolds can be attached to one EX600 communication module. This serial interface is compatible with Series SV1000/2000/3000, VQC1000/2000/4000, S0700, and the new SY Series valves. Available protocols include PROFIBUS‑DP®, DeviceNet™, CC‑Link, Ethernet™IP and EtherCAT®, PROFINET, POWERLINK, and CC‑Link IE Field™.
Features
- Unit Type: Digital Input, Output, Input/Output, Analog Input, Output, Input/Output
- Connector Type: M8, M12, D‑Sub, Spring Cage Terminal
- Up to IP67 Enclosure Rating with M8 and M12
- CE, UL, and RoHS Compatible
- Can Be Used for Linear Type or DLR Type Topology
- Supports QuickConnect™ Function
- Status Checks and Settings Can Be Performed on a Web Browser
- Wiring Time Can Be Reduced with SPEEDCON
- Self Diagnosis Function
- Max. Nine Units Can Be Connected in Any Order
